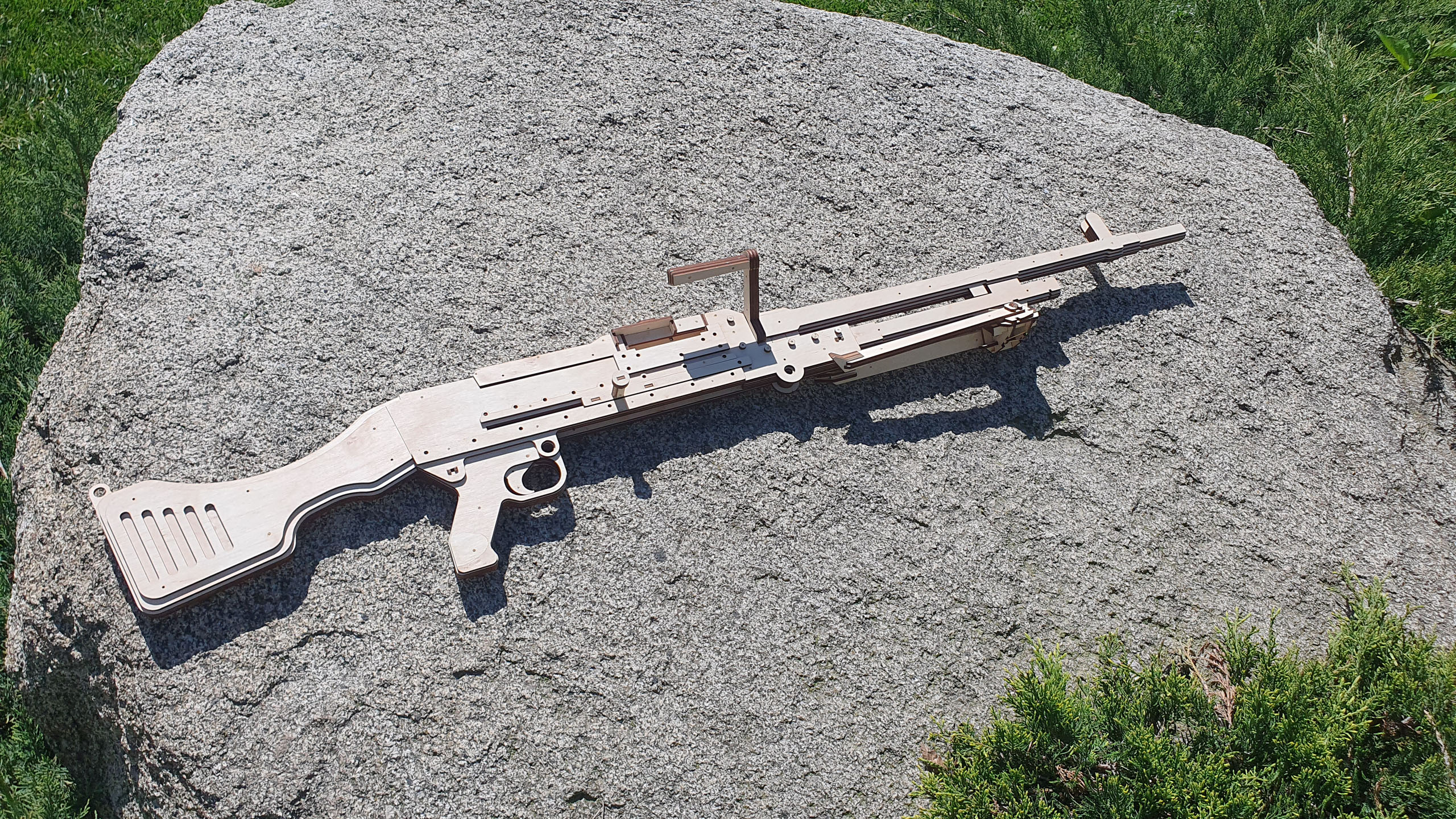

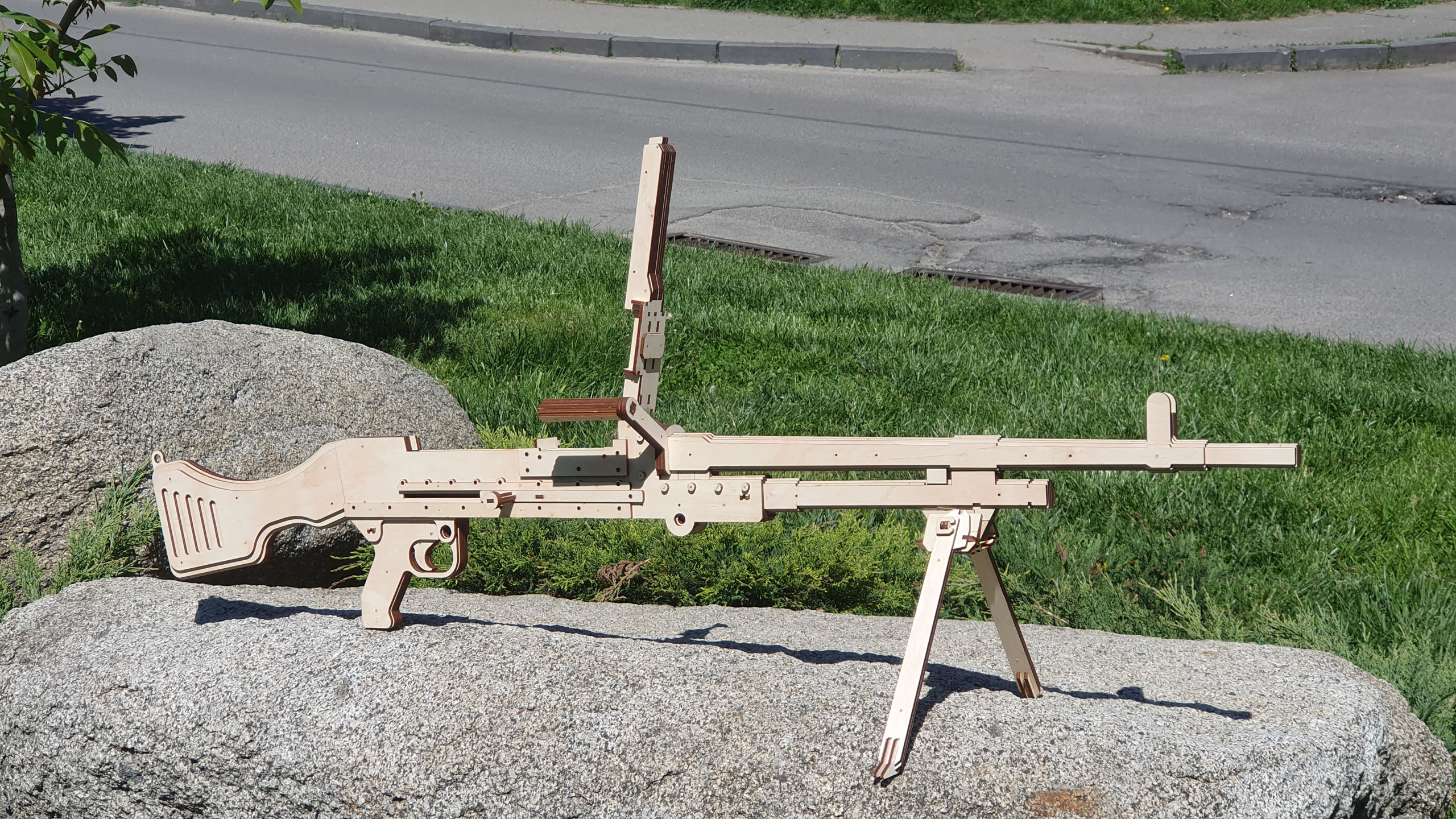

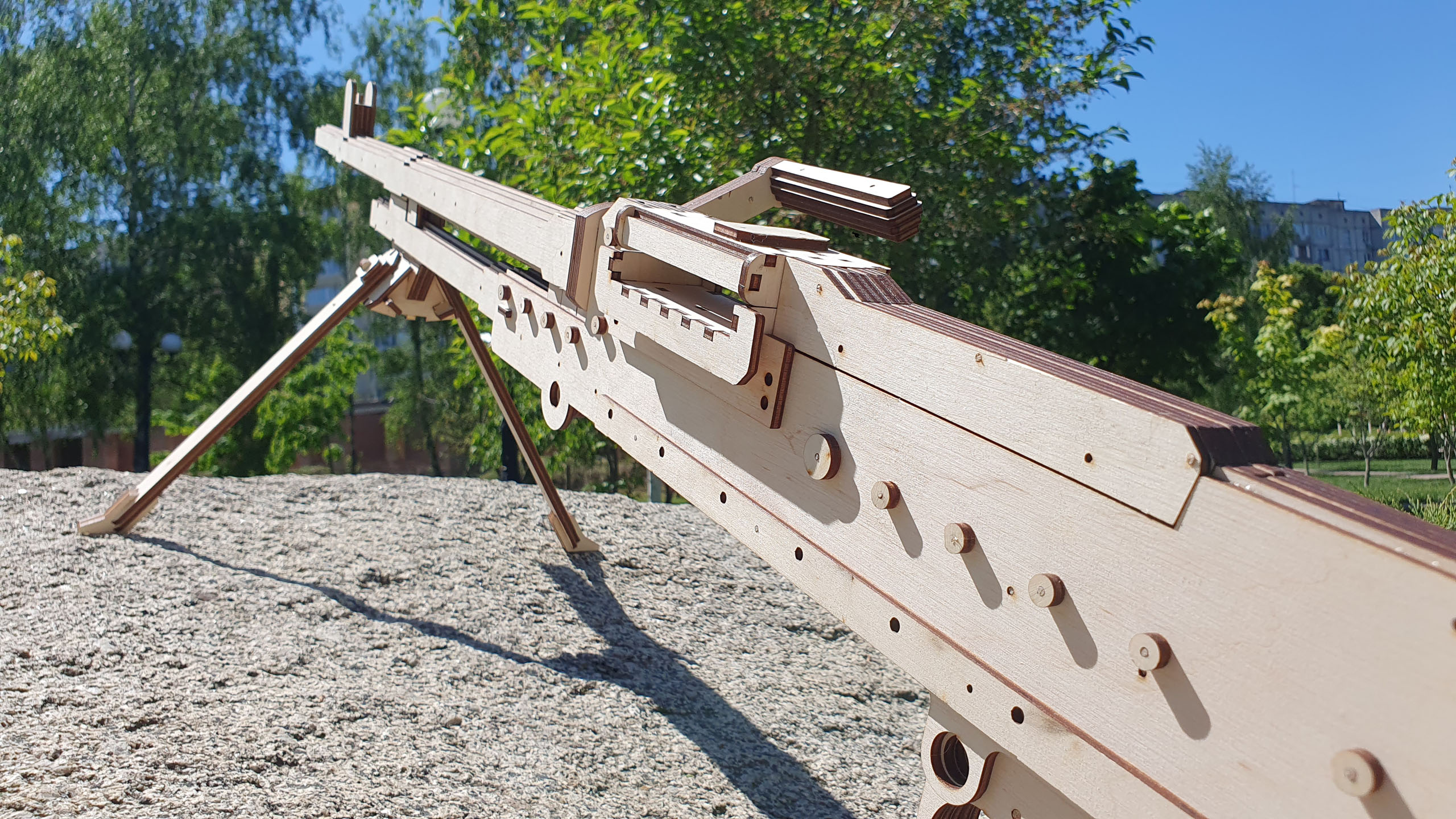

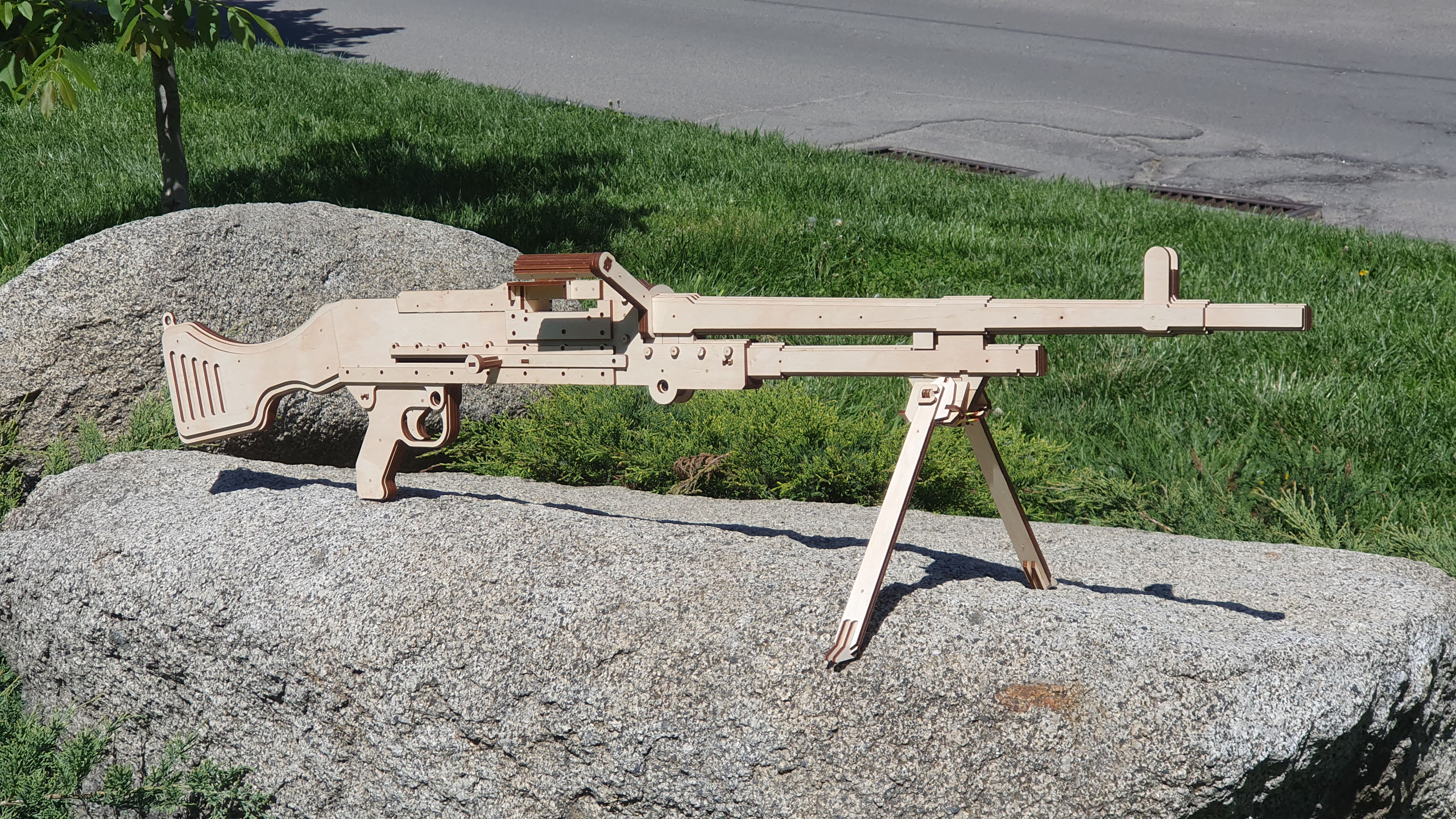

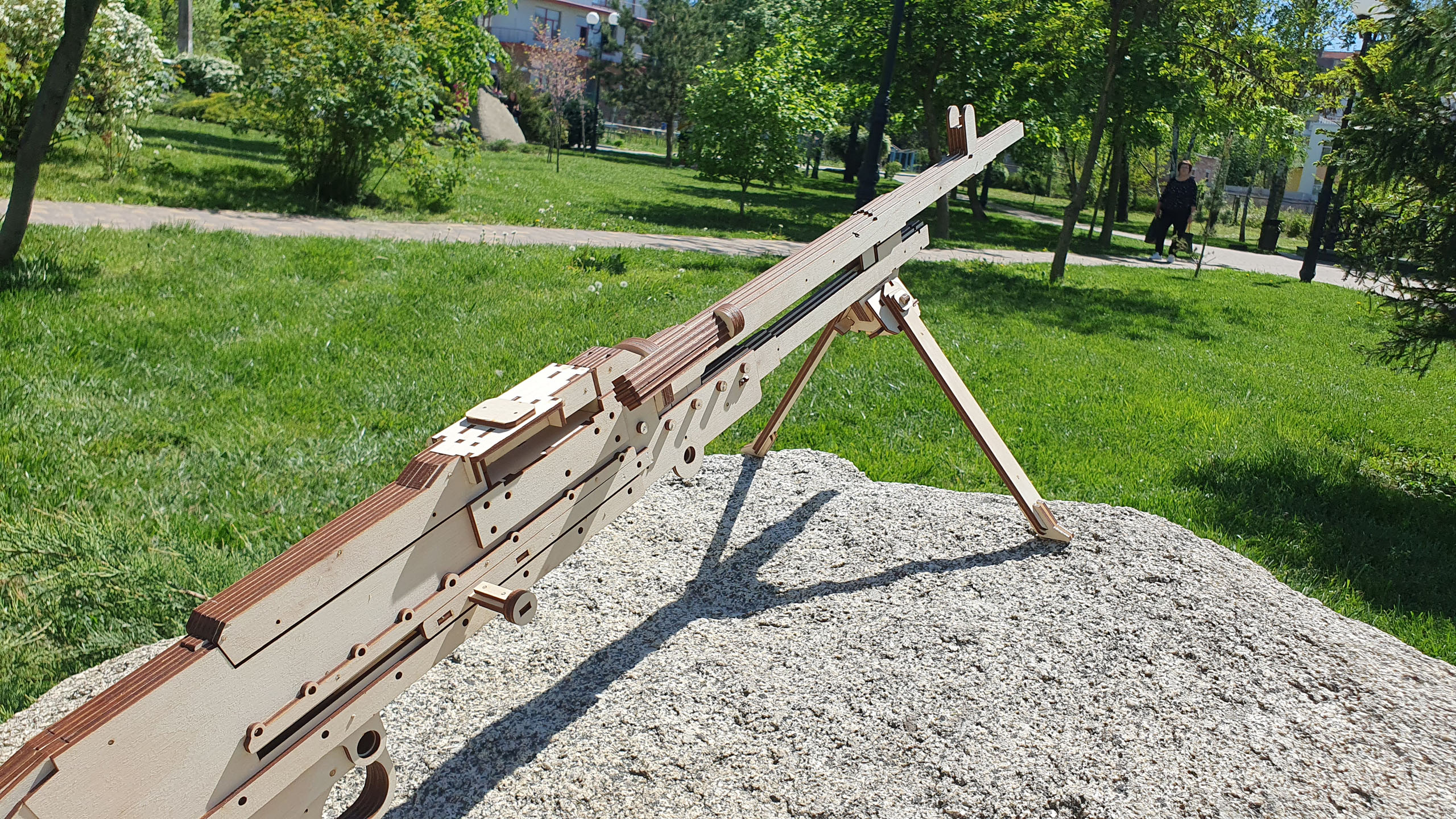

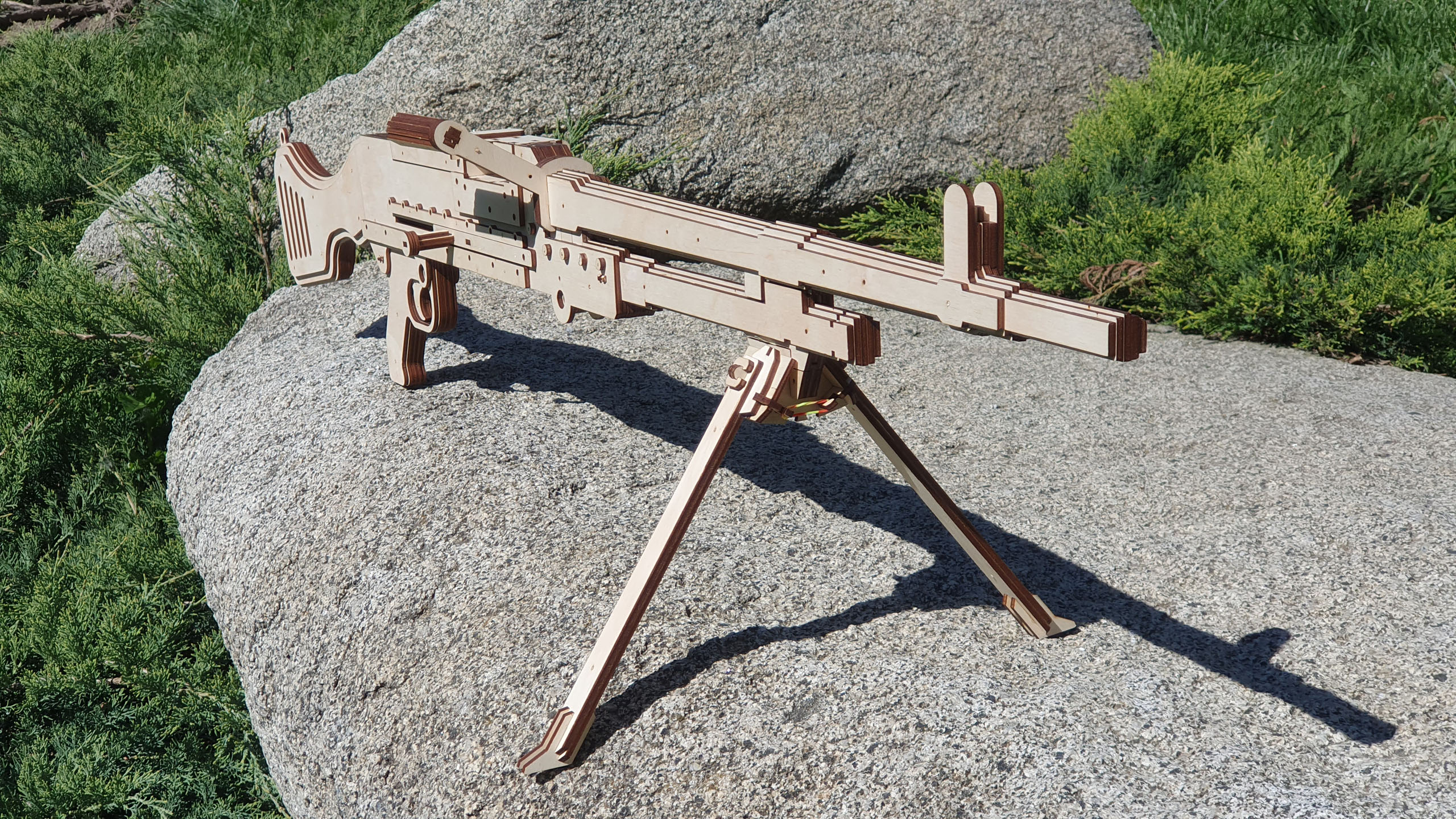

Digital file for laser cut general purpose machine gun FN MAG.
New model of wooden machine gun.
This model is made of 3.2mm, 3.6mm, 3.8mm and 4mm plywood.
Finished length for thickness 3.2mm = 1050mm
Finished length for thickness 3.6mm = 1185mm
Finished length for thickness 3.8mm = 1250mm (as close as possible to the original).
Finished length for thickness 4mm = 1310mm
The size of the maximum parts is
630*90mm, 525*111mm, 297*155mm.
********************************
V2.0
Suitable for cutting on laser machines with a working field up to 400mm.
The size of the maximum parts for 3.2mm thickness is 327*101mm, 237*127mm.
The size of the maximum parts for 3.6mm thickness is 368*113mm, 267*143mm.
The size of the maximum parts for 3.8mm thickness is 390*120mm, 282*151mm.
The size of the maximum parts for 4mm thickness is 410*126mm, 297*155mm.
To connect and correctly position the layers together, I use toothpicks (hole diameter is approximately 1.8 mm)
For material thicknesses of 3.8 and 4 mm, wooden toothpicks are most suitable.
Bamboo ones have a smaller diameter; they can be suitable for material thicknesses of 3.2 and 3.6 mm.
For the rotation axes of the trigger I used bamboo kebab skewers with a diameter of 3mm.

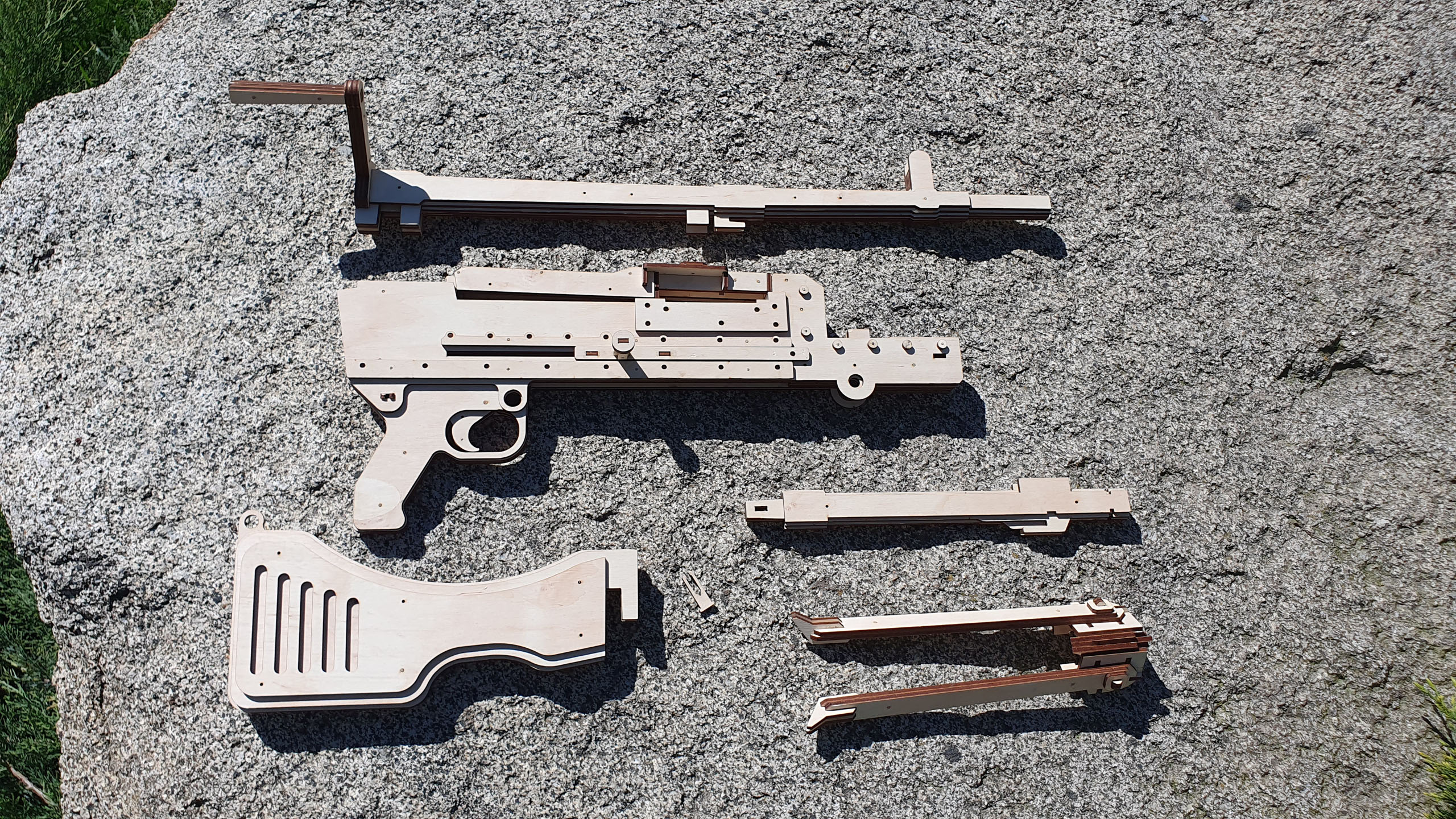

The stock, barrel with gas tube, handle and bipod are removable.
Material thickness of targets is 3mm and 4mm.
During assembly, minor grinding (exterior parts) and gluing (trigger) may be required.
Important!
This is a digital product. No physical product will be shipped!
What you get:
SVG, CDR, DXF, AI and PDF files for laser cutting in 4 ZIP archives.
Assembly instructions in pictures.
You will receive an email with links to download the files to the email address you provided when placing your order.
Features:
Instant download after purchase
Suitable for Glowforge and other laser cutters
Easy assembly with no or minimal glue
Perfect for:
DIY enthusiasts
Kids and teens gifts
Family events
Craft fairs and personalized gifts
Follow me:
https://www.instagram.com/toys_4_play/
https://www.facebook.com/toys4playVishnevoye
ATTENTION!
Since this item is digital, I cannot offer a refund for it. If you have any difficulties with the project, please contact me. I will try to answer as soon as possible and help you until you finish the project.
It is not a physical product, it is digital files for making products on a laser cut machine.
Using this file, you can create a finished product for your own or commercial use. Do not resell the file.
* * * * * * * * * * * * * * * * * * * * * * *
